| Onderdeel | Specificatie |
|---|---|

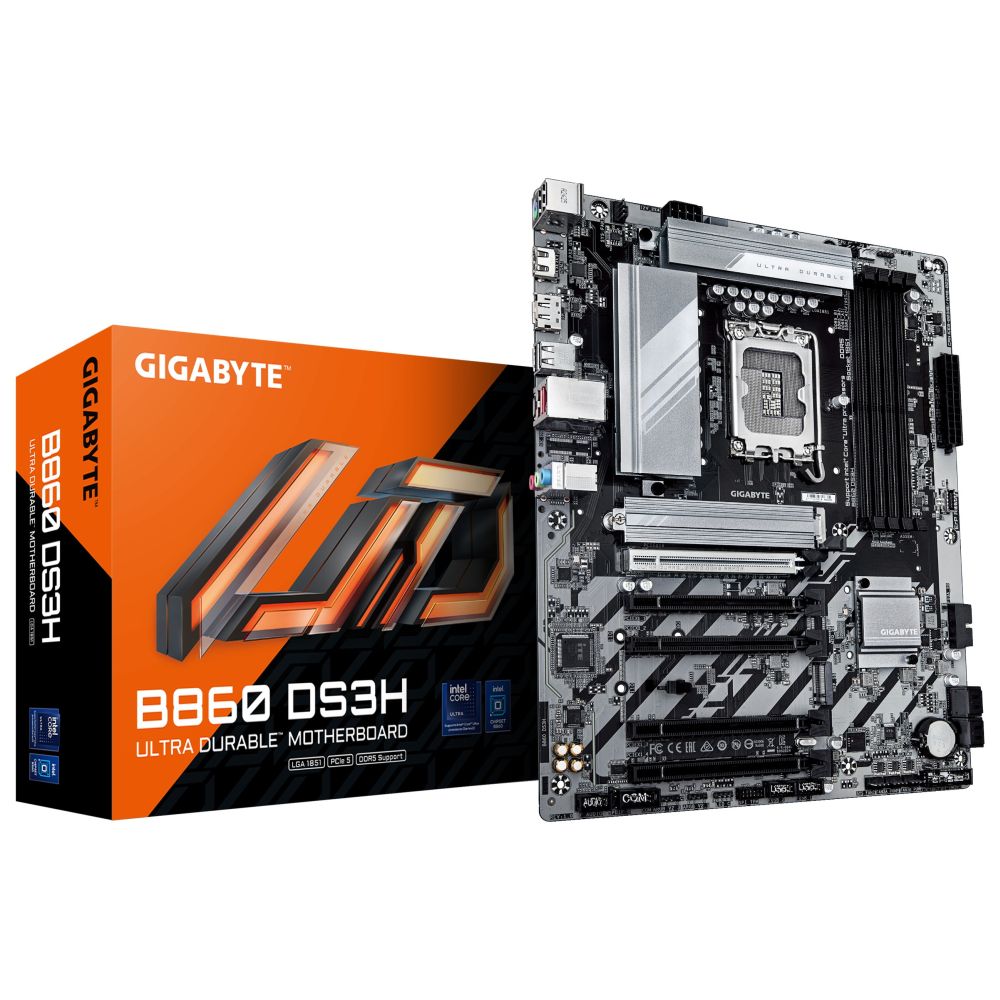

| Model | Gigabyte B860 DS3H (ATX, Socket 1851) |
| Chipset | Intel B860 Express |
| Socket | LGA 1851 (Intel Core Ultra Series compatibel) |
| Vormfactor | ATX (305 × 244 × 35 mm) |
| Geheugen | 4 × DDR5 DIMM, dual-channel, tot 256 GB (max. 9066 MT/s OC) |
| VRM Design | Hybrid 8+1+2-fase voeding op 6-lagen PCB |
| PCIe Slots | 1 × PCIe 5.0 x16; 4 × PCIe 4.0 x1 |
| M.2‑slots | 2 × M.2 Socket 3 (1 × PCIe 5.0 x4; 1 × PCIe 4.0 x4) |
| SATA-poorten | 4 × SATA III (6 Gb/s), RAID 0/1/5/10 via chipset |
| USB Achterpaneel | 1 × USB‑C 3.2 Gen 2×2, 1 × USB 3.2 Gen 2 A, 4 × USB 2.0 |
| USB Intern | Voorzie headers voor 1 × USB‑C Gen 1, 2 × USB 3.2 Gen 1, 6 × USB 2.0 |
| Video-uitgangen | 1 × HDMI 2.1, 1 × DisplayPort 2.1 |
| Netwerk | 2.5 GbE LAN (Realtek RTL8125) + Wi‑Fi 6E (AX211) & Bluetooth 5.3 |
| Audio | Realtek ALC897, 7.1 HD-audio, Hi-Fi audio condensators |
| Koeling / Headers | CPU-fan, pump-fan, 2x sys-fans, 3x ARGB headers + 1x RGB header |
| BIOS | UEFI AMI, 256 Mb ROM, Q‑Flash Plus, EZ‑Debug Zone |
| Extra Features | PCIe EZ‑Latch, M.2 Thermal Guard, EZ‑Plug Wi‑Fi, RGB Fusion |
| Kleur | Zwart / Bruin (PCB) |
