€186.22
Winkel Voorraad:
Leverancier:
| Onderdeel | Specificatie |
|---|---|

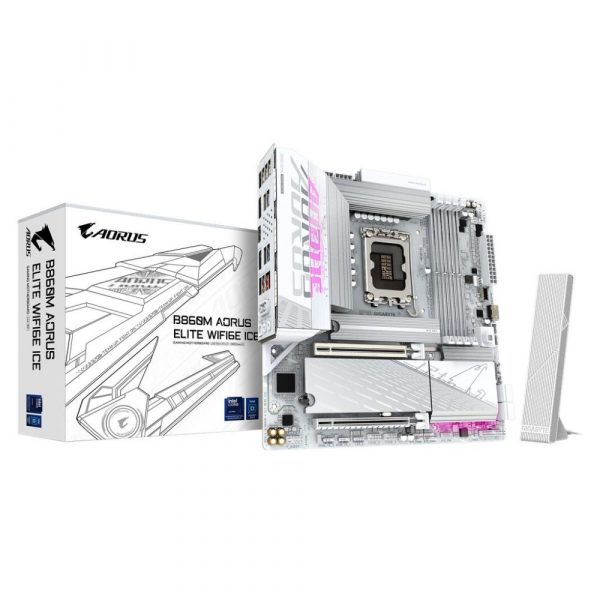

| Model | Gigabyte B860M AORUS ELITE WIFI6E ICE DDR5 (Micro-ATX, Socket LGA 1851) |
| Chipset | Intel B860 Express |
| Socket | LGA 1851 (compatibel met Intel Core Ultra Series) |
| Vormfactor | Micro-ATX (244 × 244 mm) |
| Geheugen | 4 × DDR5 DIMM, dual-channel, tot 256 GB, max. ~6400 MT/s (OC) |
| VRM Design | 12+1+2-fase digitale voeding, 6-laags PCB, 2x koperen lagen |
| PCIe Slots | 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x4 |
| M.2 Slots | 3 × M.2 (1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4) |
| SATA Poorten | 4 × SATA III (6 Gb/s), ondersteuning voor RAID 0/1/5/10 |
| USB Achterzijde | 1 × USB4 Type-C met DP-Alt, 1 × USB 3.2 Gen 2, 4 × USB 3.2 Gen 1, 4 × USB 2.0 |
| USB Intern | 1 × USB 3.2 Gen 2, 1 × USB 3.2 Gen 1, 2 × USB 2.0 |
| Video-uitgangen | 1 × HDMI 2.1, 1 × DisplayPort 2.1 |
| Netwerk | 2.5 GbE LAN (Realtek RTL8125), Wi-Fi 6E (Intel AX211), Bluetooth 5.3 |
| Audio | Realtek ALC897, 7.1-kanaals HD-audio, Hi-Fi condensators |
| Koeling / Headers | 4 × PWM/DC-fanheaders, M.2 Thermische Guard, VRM Thermal Armor |
| BIOS | UEFI AMI, 256 MB ROM, Q‑Flash Plus, EZ‑Debug Zone |
| Extra Features | PCIe EZ-Latch Plus, M.2 Thermische bescherming, EZ-Plug Wi-Fi, RGB Fusion 2.0 |
| Kleur | Wit (Ice Edition) |
