€136.13
Winkel Voorraad:
Leverancier:
8 op voorraad
| Onderdeel | Specificatie |
|---|---|

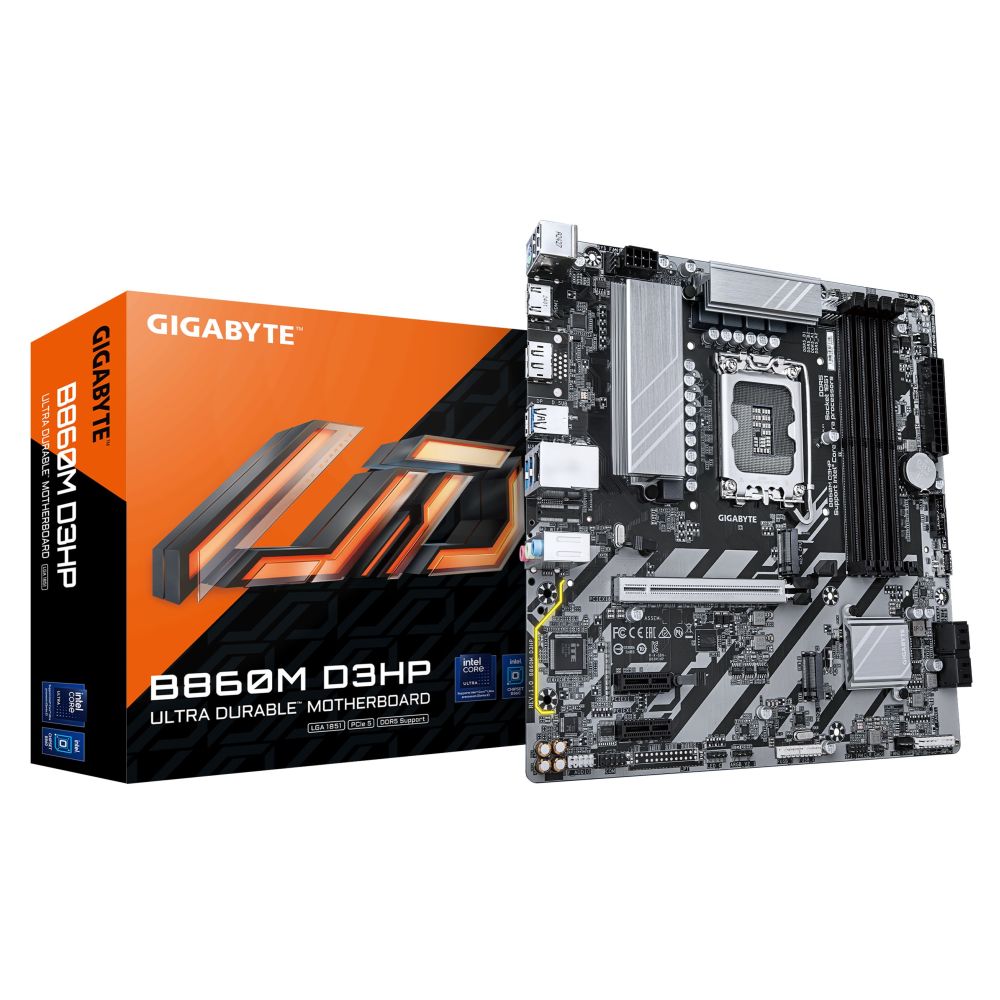

| Model | Gigabyte B860M D3HP DDR5 (Micro-ATX, Socket LGA 1851) |
| Chipset | Intel B860 Express |
| Socket | LGA 1851 (compatibel met Intel Core Ultra Series) |
| Vormfactor | Micro-ATX (244 × 244 mm) |
| Geheugen | 4 × DDR5 DIMM, dual-channel, tot 256 GB, max. ~9066 MT/s (OC) |
| VRM Design | Hybrid 4+1+2+1-fase voeding, 6-laags PCB |
| PCIe Slots | 1 × PCIe 5.0 x16, 2 × PCIe 4.0 x1 |
| M.2 Slots | 2 × M.2 (1 × PCIe 4.0 x4, 1 × PCIe 4.0 x2) |
| SATA Poorten | 4 × SATA III (6 Gb/s), ondersteuning voor RAID 0/1/5/10 |
| USB Achterzijde | 3 × USB 3.2 Gen 1, 3 × USB 2.0, 1 × HDMI 2.1, 1 × DisplayPort 2.1 |
| USB Intern | 2 × USB 3.2 Gen 1, 2 × USB 2.0, 1 × USB-C 5 Gb/s |
| Netwerk | 1 × Gigabit Ethernet (Realtek RTL8111H) |
| Audio | Realtek ALC897, 7.1-kanaals HD-audio, Hi-Fi condensators |
| Koeling / Headers | 2 × CPU-fanheaders, 2 × systeemfanheaders, 2 × waterpompheaders, 3 × RGB headers |
| BIOS | UEFI AMI, 256 Mb ROM, Q‑Flash Plus, EZ‑Debug Zone |
| Extra Features | PCIe EZ-Latch, D5 Bionic Corsa (geoptimaliseerde DDR5-prestaties), AI Perfdrive |
| Kleur | Donkerbruin (Ultra Durable) |
