€165.65
Winkel Voorraad:
Leverancier:
37 op voorraad
| Onderdeel | Specificatie |
|---|---|

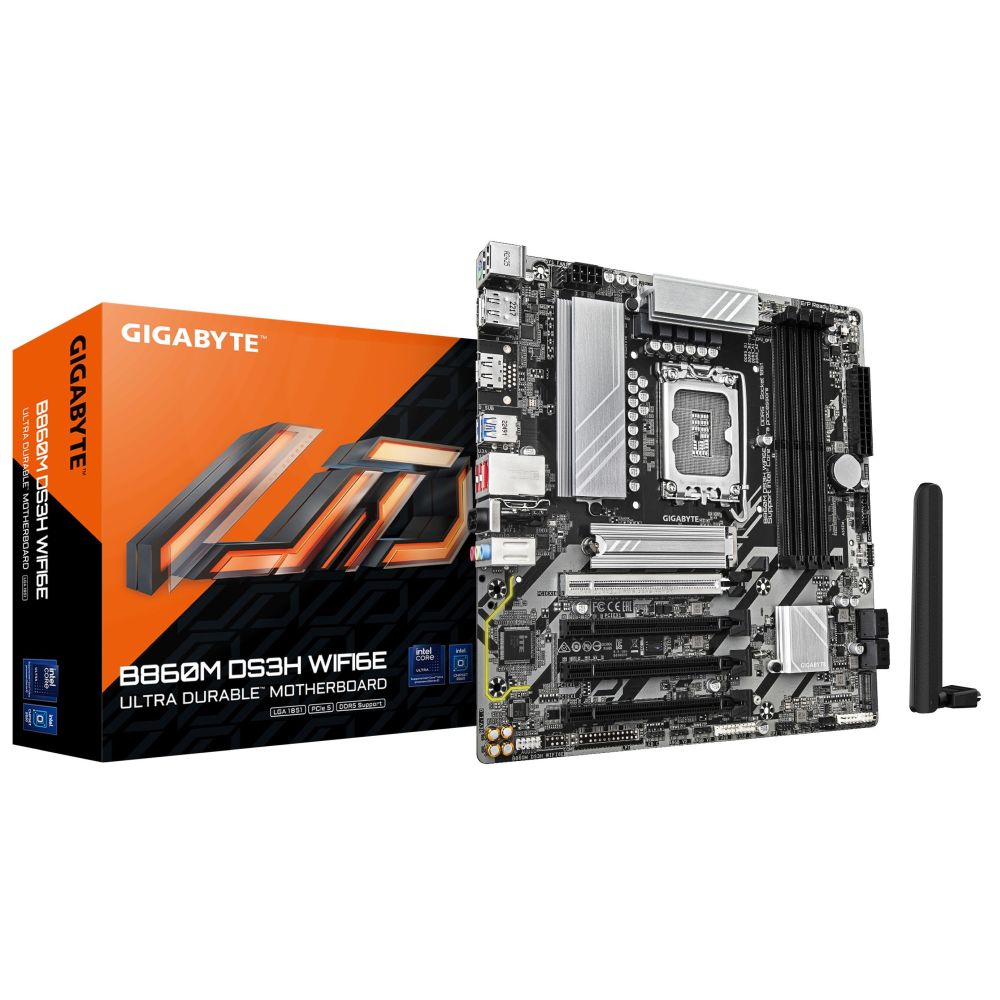

| Model | Gigabyte B860M DS3H WIFI6E DDR5 (Micro-ATX, Socket LGA 1851) |
| Chipset | Intel B860 Express |
| Socket | LGA 1851 (compatibel met Intel Core Ultra Series) |
| Vormfactor | Micro-ATX (244 × 244 mm) |
| Geheugen | 4 × DDR5 DIMM, dual-channel, tot 256 GB, max. ~9066 MT/s (OC) |
| VRM Design | Hybrid 5+1+2-fase voeding, 6-laags PCB |
| PCIe Slots | 1 × PCIe 5.0 x16, 3 × PCIe 4.0 x1 |
| M.2 Slots | 2 × M.2 (1 × PCIe 5.0 x4, 1 × PCIe 4.0 x4) |
| SATA Poorten | 4 × SATA III (6 Gb/s), ondersteuning voor RAID 0/1/5/10 |
| USB Achterzijde | 1 × USB 3.2 Gen 2 Type-A, 2 × USB 3.2 Gen 1 Type-A, 3 × USB 2.0, 1 × USB Type-C |
| Video-uitgangen | 1 × HDMI 2.1, 2 × DisplayPort 2.1 |
| Netwerk | 2.5 GbE LAN (Realtek RTL8125), Wi-Fi 6E (Intel AX211), Bluetooth 5.3 |
| Audio | Realtek ALC897, 7.1-kanaals HD-audio, Hi-Fi condensators |
| Koeling / Headers | 1 × CPU-fanheader, 1 × systeemfanheader, 2 × waterpompheaders, 3 × RGB headers |
| BIOS | UEFI AMI, 256 MB ROM, Q‑Flash Plus, EZ‑Debug Zone |
| Extra Features | PCIe EZ-Latch, M.2 EZ-Latch Plus, M.2 Thermal Guard, Wi-Fi EZ-Plug, RGB Fusion |
| Kleur | Zwart (Ultra Durable) |
