| Onderdeel | Specificatie |
|---|---|

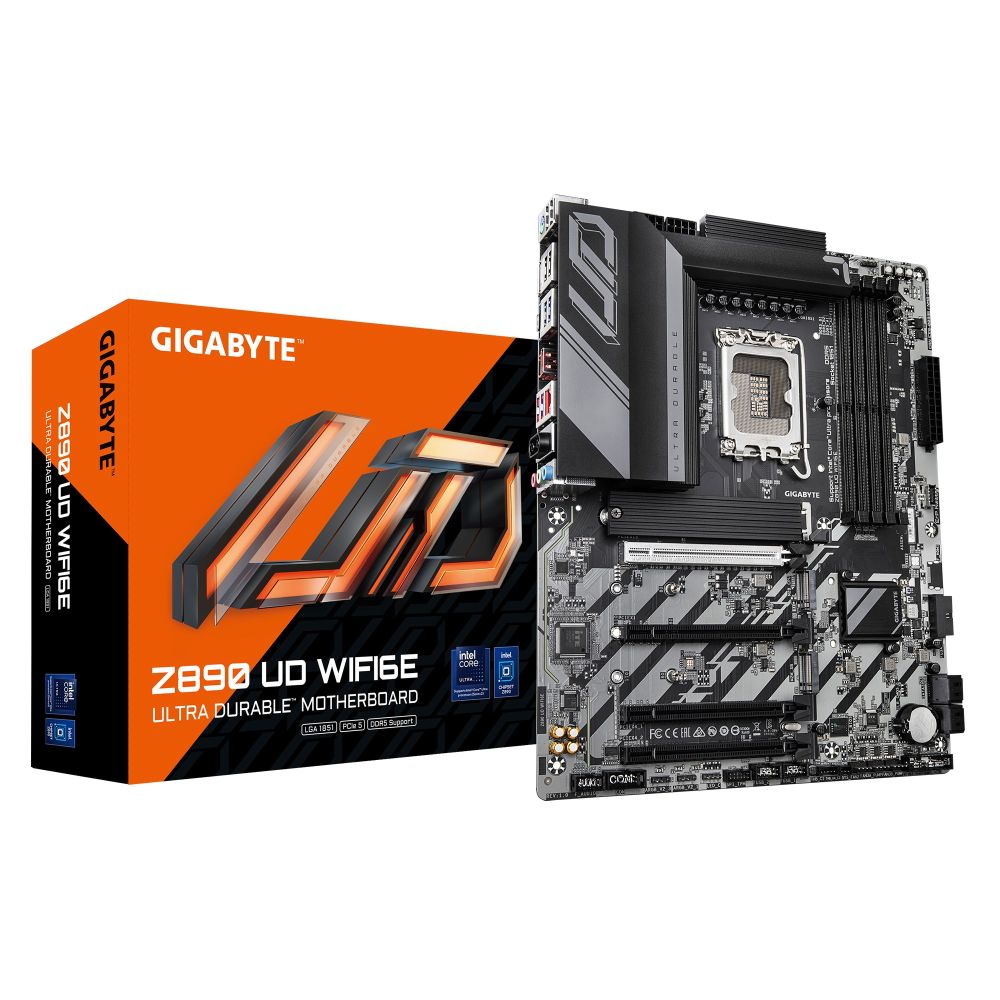

| Model | Gigabyte Z890 UD WIFI6E DDR5 (ATX, Socket LGA 1851) |
| Chipset | Intel Z890 Express |
| Socket | LGA 1851 (compatibel met Intel Core Ultra Series 2) |
| Vormfactor | ATX (305 × 244 mm) |
| Geheugen | 4 × DDR5 DIMM, dual-channel, tot 256 GB, max. ~8800 MT/s (OC) |
| VRM Design | 12+1+2 digitale twin VRM, 60A DrMOS, 2× koperen PCB |
| PCIe Slots | 1 × PCIe 5.0 x16, 2 × PCIe 4.0 x16 (x4 modus), 1 × PCIe 4.0 x16 (x1 modus) |
| M.2 Slots | 1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4, 1 × PCIe 4.0 x4 / SATA III |
| SATA Poorten | 4 × SATA III (6 Gb/s), ondersteuning voor RAID 0/1/5/10 |
| USB Achterzijde | 1 × USB4 Type-C (40 Gb/s met DisplayPort Alt Mode), 1 × USB 3.2 Gen 2, 4 × USB 3.2 Gen 1, 4 × USB 2.0 |
| USB Intern | 1 × USB 3.2 Gen 1 Type-C header, 1 × USB 3.2 Gen 1 header, 2 × USB 2.0 headers |
| Video-uitgangen | 1 × DisplayPort 2.1 |
| Netwerk | 2.5 GbE LAN (Realtek RTL8125), Wi-Fi 6E (802.11ax), Bluetooth 5.3 |
| Audio | Realtek ALC897, 7.1-kanaals HD-audio, Hi-Fi condensators |
| Koeling / Headers | 1 × CPU-fanheader, 3 × systeemfanheaders, 3 × ARGB headers, 1 × RGB header |
| BIOS | 256 MB UEFI BIOS, Q‑Flash Plus, EZ-Debug Zone |
| Extra Features | PCIe EZ-Latch, M.2 Thermal Guard, EZ-Plug Wi-Fi, RGB Fusion |
| Kleur | Zwart met zilveren accenten |
